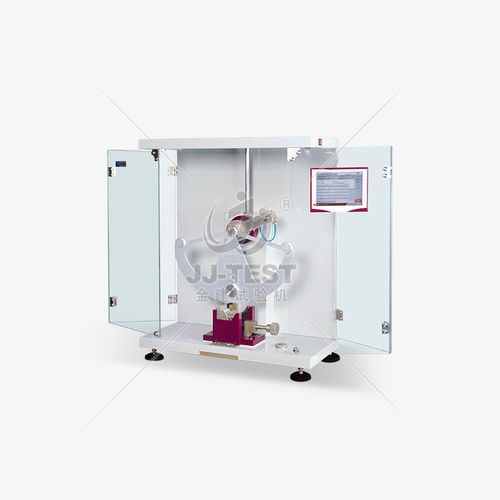

Computer-controlled pendulum impact tester HIT-2494

for plasticsfor Charpy testingfor IZOD testing

This instrument is mainly used to measure the impact toughness of non-metallic materials such as hard thermoplastic molding and extrusion materials, hard thermosetting molding materials and fiber-reinforced thermosetting and thermoplastic composites. Standard GB/T 21189 GB/T 1843 GB/T 1043 ISO 180 ISO 179-1 Features 1. One host can realize two impact test methods of Charpy and Izod. 2. Unique and innovative design of the vice and of the hammer allows operator to run alternatively Charpy and Izod tests without changing the instrument geometry. 3. One impact pendulum can achieve two impact speeds and multiple impact energies. 4. The fan-shaped pendulum has good rigidity, no vibration and small wind resistance. /span> 5. With automatic hammer brake system. 6. As technical core & soul, the innovative hammer blade is also able to be applied in Charpy or Izod test. 7. High-level automation design: Automatic identification of test method, automatic measurement of starting angle as well as automatic calibration of energy loss. 8. The function of automatically measuring the swing period of the pendulum avoids the error of artificial timing, and the measurement is more accurate. 9. Seamless Switching between colorful touch screen provides convenient and flexible operation, by which the superiority also can be demonstrated.
