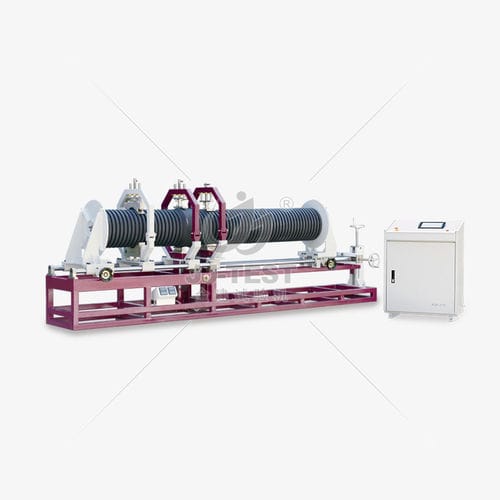

Pressure leak tester JJAST-102

for pipe

This instrument is mainly used for the detection of the matching performance between the pipes when the plastic pipes such as polyvinyl chloride, polyethylene, polypropylene and other plastic pipes are connected by elastic sealing ring, that is, the detection of the sealing problem of the interface; insert the pipe section into the socket pipe section Compose the sample, make the axis of the two pipe sections into a deformation angle, keep it for the specified time under the specified two negative pressure conditions, and check whether the sample leaks during the test. This product is ideal for testing units, production units, and scientific research units. test instrument. Standard GB/T 19472.1 GB/T 19472.2 GB/T 18477.1 GB/T 18477.3 GB/T 16800 GB/T 10002 ISO 4422-2 ISO 13844 Features 1. Industrial color LCD touch screen, arbitrary test pressure setting from 0 to -0.08MPa, programmable pressure control in stages; convenient for checking data, and providing abundant test time pressure curve and other information. 2. The test data can be stored in the U disk to realize massive data storage. Data storage adopts general format, no professional software is needed, and general office software can be used to query. 3. Hydraulic pipe radial deformation device, digital display meter head size deformation monitoring, and can automatically adjust the center, the operator can easily save effort when pressure is applied to the thick-walled pipe. 4. Different specifications of pipe fittings are equipped with corresponding support blocks to make the operation more simple and clear.
