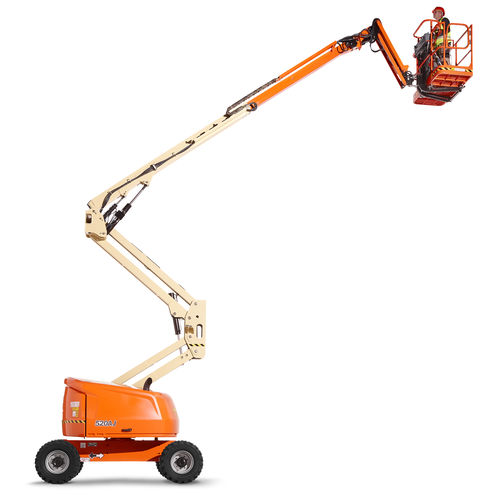

Wheeled articulated boom lift 520AJ

diesel

Key Specs • - Platform Height: 16 m / 52.5 ft • - Platform Capacity - Unrestricted: 250 kg / 551.2 lb • - Horizontal Outreach: 10 m / 32.8 ft Key Features • - Variable speed engine control for improved fuel efficiency reducing operating costs. • - 50%* faster full elevation time (*actuals might vary) increasing workers efficiency. • - Half a meter more horizontal reach for an increased work envelope. • - 250 kg in basket vs 230 kg before allowing you to carry more tools or materials to stay on a job longer. Power Source Auxiliary Power - 12 Volts DC Capacity - Fuel Tank - 60.50 L / 16 gal. Engine Type - Diesel (HRC) - Deutz D2.3 L3 Stage IIIA Engine Type - Diesel (LRC) - Deutz D2.3 L3 Stage IIIA Performance Data Axle Oscillation - 0.1 m / 4 in. Drive Speed - 4WD - 6.80 km/h / 4.2 mph Gradeability - 4WD - 45 % Platform Capacity - Unrestricted - 250 kg / 551.2 lb Swing - 355 Degrees Swing Type - Non-Continuous Turning Radius - Outside - 4.78 m / 15.7 ft Jib - Range of articulation - 144 Degrees Dimensional Data Ground Clearance - 0.42 m / 1 ft 5 in. Machine Height - 2.27 m / 7.4 ft Machine Length - 7.77 m / 25.5 ft Machine Width - 2.35 m / 7.7 ft Platform Dimension A - 0.76 m / 2.5 ft Platform Dimension B - 1.83 m / 6 ft Platform Height - 16 m / 52.5 ft Tailswing - 0 m / 0 in. Tyre Size - 33/1550 x 16.5 Foam Filled Superwide tyres Tyre size - 33/1550 x 16.5 Foam Filled Superwide tyres Reach Specifications Horizontal Jib Rotation - 0 Degrees Horizontal Outreach - 10 m / 32.8 ft Platform Height - 16 m / 52.5 ft Up and Over Height - 7.30 m / 24 ft Working Height - 18 m / 59.1 ft Working Outreach - 10.65 m / 34.9 ft
