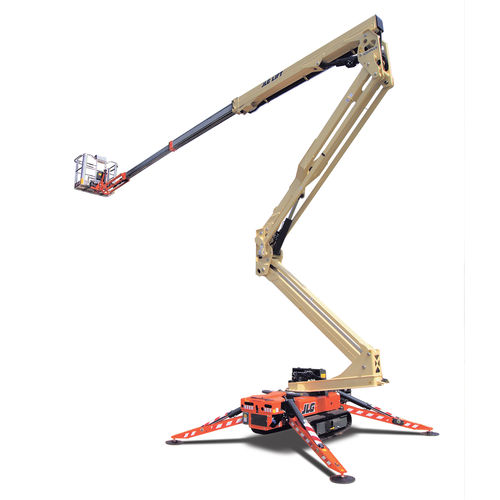

Crawler spider lift X26J Plus

diesel-electric hybridcompact

Key Specs • - Working Height: 25.60 m / 84 ft • - Working Outreach: 13.75 m / 45.1 ft • - Platform Capacity: 230 kg / 507.1 lb • - Machine Width: 0.99 m / 3.2 ft Key Features • - Lithium or diesel drive • - Track drive for sensitive surfaces,indoor or out. • - 26 Meter working height. • - 360 Degrees, 230kg platform capacity unrestricted. • - ***Product image displayed is a temporary placeholder. Power Source Engine Type - Diesel - Kubota D902, 16 kw Engine Type - Electric - 110V or 220V, 50Hz, 2.2kW Performance Data Gradeability - 28 % Outriggers or Stabilizers - Yes Platform Capacity - 230 kg / 507.1 lb Swing - 360 Degrees Swing Type - Non-Continuous Jib - Range of articulation - 89 Degrees Dimensional Data Machine Height - 1.99 m / 6.5 ft Machine Length - 6.35 m / 20.8 ft Machine Width - 0.99 m / 3.2 ft Outrigger Footprint Length - 4.08 m / 13.4 ft Outrigger Footprint Width - 3.98 m / 13.1 ft Platform Dimension A - 0.69 m / 2.3 ft Platform Dimension B - 1.34 m / 4.4 ft Track Length - 1.76 m / 5.8 ft Reach Specifications Horizontal Outreach - 13.10 m / 43 ft Working Height - 25.60 m / 84 ft Working Outreach - 13.75 m / 45.1 ft Working Outreach - 13.75 m / 45.1 ft General Specifications Maximum Ground Bearing Pressue - 0.54 Kg/cm2 Ground Bearing Pressure - Outriggers - 4.51 Kg/cm2 Machine Weight - 4365 kg / 9623.2 lb Machine Weight (CE & GOST) - 4365 kg / 9623.2 lb
