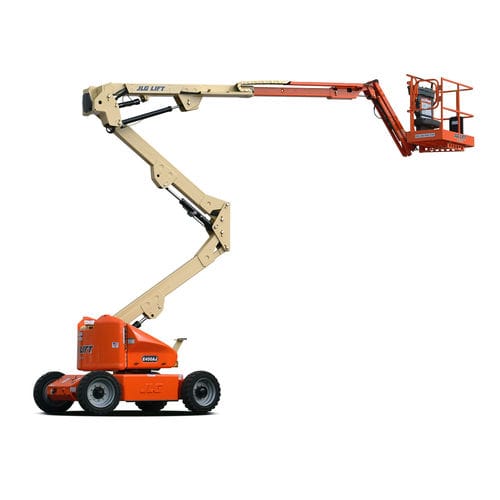

Wheeled articulated boom lift E450AJ

electricfor construction

Key Specs • - Working Height: 15.72 m / 51.6 ft • - Working Outreach: 7.89 m / 25.9 ft • - Platform Capacity: 230 kg / 507.1 lb Key Features • - The choice of four models with working height up to 15.50 m and various options for increased versatility • - Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability • - High-efficiency direct electric drive with longer duty cycles for increased productivity • - Zero emissions for environmentally-friendly equipment Power Source Batteries - 8 x 6V, 370 A-h Electrical System - 48 Volts DC Performance Data Drive Speed - Platform Lowered - 5.20 km/h / 3.2 mph Gradeability - 2WD - 30 % Platform Capacity - 230 kg / 507.1 lb Swing - 360 Degrees Swing Type - Non-Continuous Turning Radius - Outside - 3.15 m / 10.3 ft Jib - Range of articulation - 144 Degrees Dimensional Data Ground Clearance - 0.2 m / 8 in. Machine Height - 2.01 m / 6.6 ft Machine Length - 6.45 m / 21.2 ft Platform Dimension A - 0.76 m / 2.5 ft Platform Dimension B - 1.52 m / 5 ft Tailswing - 0 m / 0 in. Tyre size - 240/55-17.5 Foam Filled Wheelbase - 2.01 m / 6.6 ft Reach Specifications Working Height - 15.72 m / 51.6 ft Working Outreach - 7.89 m / 25.9 ft Horizontal Jib Rotation - 0 Degrees Horizontal Outreach - 7.24 m / 23.8 ft General Specifications Capacity - Hydraulic Reservoir - 20 L / 5.3 gal. Machine Weight (CE & GOST) - 6670 kg / 14704.8 lb Maximum Ground Bearing Pressue - 7.60 Kg/cm2
