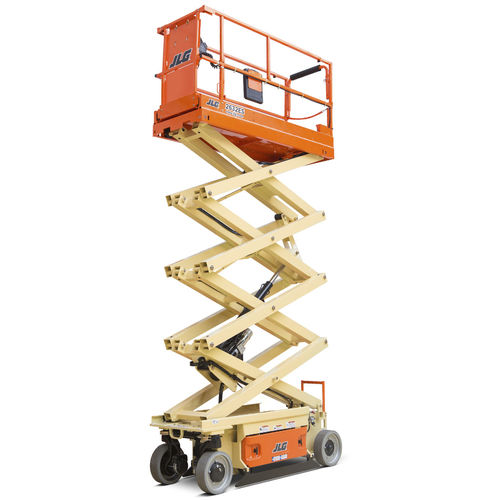

Mobile scissor lift 2632ES

electricindoor

Key Specs • - Working Height: 9.77 m / 32.1 ft • - Platform Capacity - Unrestricted: 230 kg / 507.1 lb • - Machine Width: 0.81 m / 2.7 ft Key Features • - Quiet and clean operation with two DC drive electric motors for any indoor flat surface environment • - Reduced weight compared to its predecessor and with just two hydraulic hoses and four fittings minimising the need for maintenance • - Its narrow width allows the machine to fit through most standard doorways and access tight aisles Power Source Batteries - 4 x 6V, 220 A-h Charger - 20 A automatic General Specifications Brakes - Automatic Friction - Front Capacity - Hydraulic Reservoir - 10.60 L / 2.8 gal. Maximum Ground Bearing Pressue - 6.14 Kg/cm2 Hydraulic Pump - Fixed Displacement Gear Machine Weight (ANSI Export & CSA) - 2132 kg / 4700.3 lb Machine Weight - 2103 kg / 4636.3 lb Machine Weight (CE & GOST) - 2135 kg / 4706.9 lb Performance Data Drive Speed - Platform Elevated - 0.80 km/h / 0.5 mph Drive Speed - Platform Lowered - 4.40 km/h / 2.7 mph Drive System - 24V Electric Gradeability - 25 % Lift Time - 40 sec. Lower Time - 40 sec. Maximum Drive Height - 7.77 m / 25.5 ft Platform Capacity - Extension - 120 kg / 264.6 lb Platform Capacity - Restricted - 360 kg / 793.7 lb Platform Capacity - Unrestricted - 230 kg / 507.1 lb Turning Radius - Inside - 0 m / 0 ft Turning Radius - Outside - 2.06 m / 6.8 ft Dimensional Data Ground Clearance - 0.09 m / 4 in. Machine Height - 2.33 m / 7.6 ft Machine Height - Rails Folded - 1.98 m / 6.5 ft Machine Length - 2.30 m / 7.5 ft Machine Width - 0.81 m / 2.7 ft Platform Dimension A - 0.76 m / 2.5 ft Platform Dimension B - 2.30 m / 7.5 ft Platform Extension Length - 0.90 m / 3 ft Platform Height - 7.75 m / 25.4 ft
