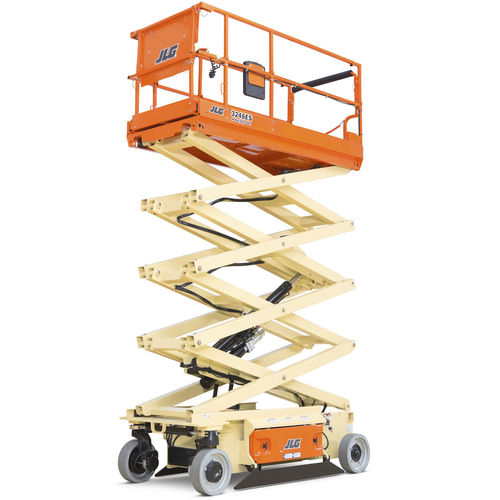

Mobile scissor lift 3246ES

electricindoor/outdoor

Key Specs • - Working Height: 11.68 m / 38.3 ft • - Platform Capacity - Unrestricted: 320 kg / 705.5 lb • - Machine Width: 1.17 m / 3.8 ft Key Features • - Quiet, clean, smooth operation for a variety of environments • - Electric front wheel drive provides outstanding manoeuvrability and long duty cycles • - Manual roll-out deck extension standard for increased workspace • - Integrated component design with two hydraulic hoses reduces potential for leaks and assists maintenance to keep you on the job longer Power Source Batteries - 4 x 6V, 220 A-h Charger - 20 A automatic General Specifications Brakes - Electric, Friction Capacity - Hydraulic Reservoir - 6.40 L / 1.7 gal. Maximum Ground Bearing Pressue - 6.90 Kg/cm2 Hydraulic Pump - Fixed Displacement Gear Machine Weight - 2903 kg / 6400 lb Machine Weight (CE & GOST) - 2903 kg / 6400 lb Performance Data Turning Radius - Inside - 0 m / 0 ft Drive Speed - Platform Elevated - 0.80 km/h / 0.5 mph Drive Speed - Platform Lowered - 4 km/h / 2.5 mph Gradeability - 25 % Lift Time - 50 sec. Lower Time - 60 sec. Maximum Drive Height - 9.68 m / 31.8 ft Maximum Lift Height - 9.68 m / 31.8 ft Platform Capacity - Extension - 120 kg / 264.6 lb Platform Capacity - Restricted - 450 kg / 992.1 lb Platform Capacity - Unrestricted - 320 kg / 705.5 lb Turning Radius - Outside - 2.41 m / 7.9 ft Dimensional Data Ground Clearance - 0.13 m / 5 in. Machine Height - 2.36 m / 7.7 ft Machine Height - Rails Folded - 1.97 m / 6.5 ft Machine Length - 2.50 m / 8.2 ft Machine Width - 1.17 m / 3.8 ft Platform Dimension A - 1.12 m / 3.7 ft Platform Dimension B - 2.50 m / 8.2 ft Platform Extension Length - 1.27 m / 4.2 ft Platform Height - 9.68 m / 31.8 ft
