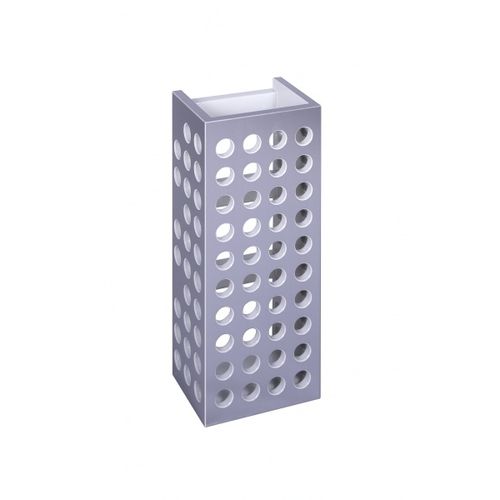

Mechanical clamping device

machininglateral

To be used as precision clamping tool on machine tools, surface plates and CMMs. Design Inherently stable and warp resistant cast body. All lateral surfaces worked, flat, parallel and rectangular according to the indicated accuracies. With bore holes for clamping and weight reduction. Accuracy >JFA precision grade I: allside ground, standing surface and the three clamping surfaces are finely scraped and touched >JFA precision grade I+: allside ground, standing surface and the three clamping surfaces are especially scraped and touched Accessories >Stop bar made of hardened steel >Standing surface with air bearing system available from a chimney height of 1000 mm onwards
