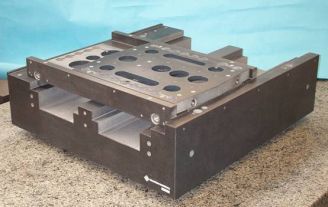

XY positioning stage

2-axisprecisionmeasurement

High dynamic machine concepts can be provided with components of natural hardstone - granite, offering multiple advantages in comparison to conventional materials. >Precision cross-table, air-beared for micromachining in high precision and dynamic. >All movement axes are air-beared and equipped with linear drives. >Air bearings are directly incorporated into the granite components. Nearly friction-free bearings, low specific weight and the relatively high stiffness of the part enables excellent postioning accuracy of each axis with high dynamic. Specifications >Dimensions: 1300 x 1200 x 400 mm >Traverse path in X- and Y-direction: 500 x 300 mm >Running precision in X- and Y-direction: Optical measurement technologies >Laser-micromachining >Micro-, precision assembly Other dimensions, accuracies and various guidance principles and drives are possible.
