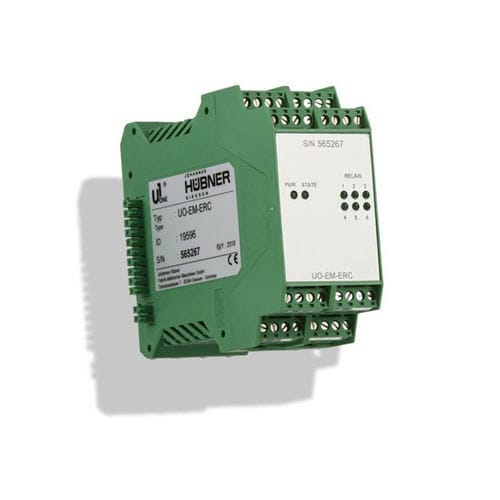

Relay switch module U-ONE Generation I

AC/DCposition

Position ​​switch module for encoder system U-ONE Generation I for installation in the switchboard 6 programmable relay position switches Switching capacity up to 250 V AC/DC and 0.5 A Degree of protection IP20, temperature range from -25 to +70 °C Programmable functions: preset, switching range, hysteresis, direction of rotation, unit, identification, conversion factor Option: combination of several modules Description The position switch modules of the first generation of the U-ONE universal encoder system have six programmable switching outputs (each with one switch-off point and one switch-on point). The use of several position switch modules and the combination with other U-ONE modules, e.g. speed switch modules, is possible. Technical data Supply voltage 12-30 VDC Dimensions 99.5 x 22.5 x 114.5 mm (modular electronics housing for DIN rail) Switching outputs Position Signal outputs / Interfaces 6 programmable position switches (changeover contact 250 V / 0.5 A AC/DC) Status output: 1 potential-free relay output (NC contact 250 V / 0.5 A AC/DC) Preset: 1 optorelay (preset input 12-30 V / 5 mA DC and handshake output (40 V / 0.1 A DC) Programmable functions via decoder module UO-EM-D2 (ERCPro – software): Operating range inputs with inversion option, hysteresis value, count direction, unit, identification, last alteration (automatic input), conversion factor. LED indicator: Power / Status / Relay status Electrical connection Screw terminals to connect switches Series connectors to preceding and following modules (internal bus connection) Device options / Function Can be combined with other modules of the system solution U-ONE Generation I
