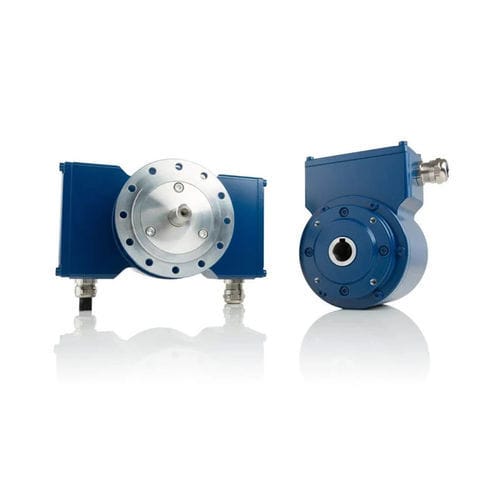

Electronic rotational speed monitor EGS 41

SIL

Electronic speed monitor for overspeed / underspeed and standstill Up to 4 programmable switches Programmable functions: switching range, delay, hysteresis, standstill, direction of rotation Options: up to 2 attachments, additional incremental output Description The electronic speed monitors (speed switches) of the EGS 41 series monitor up to four programmable speed ranges (underspeed, overspeed and standstill). They offer high switching accuracy even at low speeds. The speed monitors are certified for safety applications up to SIL 2 / PL d. If a programmed speeds is exceeded or is too low, the respective switching output switches. The speed monitors are primarily used for safety applications in ports, mining and steel mills. Safe The electronic speed monitors of the EGS 41 series ensure reliable speed monitoring even under harsh ambient conditions. Electrically insulated semi-conductor switches Slip detection (standstill / crawling movement) Status monitoring of switching contacts Programmable switching points according to the direction of rotation Internal system monitoring with diagnostics switch Overcurrent switch off Broken wire detection Reliable The electronic speed monitors of the EGS 41 series are characterized by a very long service life and a high level of availability. High shock and vibration resistance Large bearings with high dynamic load rating Robust, thick-walled housing Torque bracket with ball joints Option: hollow shaft design with insulated hybrid bearings Precise The electronic speed monitors of the EGS 41 series work without speed increasing gears. They offer very high switching accuracy. Wear-free electronic switching contacts
