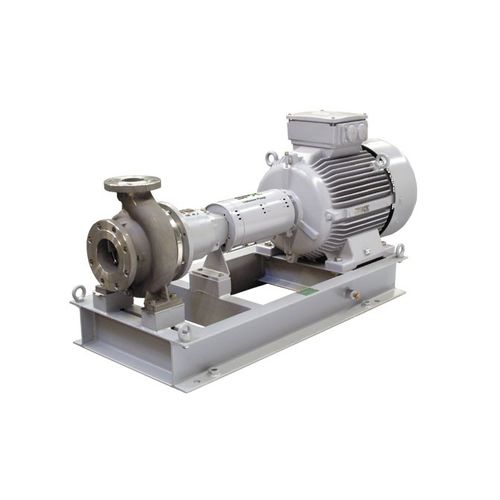

Clear water pump CombiMagfor chemicalsoilmagnetic-drive
Add to favorites
Compare this product
Characteristics
- Fluid
- for clear water, for chemicals, oil
- Operation
- magnetic-drive
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- circulation, chemical process
- Material
- stainless steel, cast iron, nickel
- Fluid specification
- for corrosive fluids, for hazardous fluids
- Protection level
- ATEX
- Other characteristics
- high-efficiency, suction, fully-enclosed, horizontal mount, heavy-duty, axial, lubricated, open, seal-less, heavy-duty, heating, waterproof
- Flow
Max.: 550 m³/h
(19,423.0667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 16 bar
(232.06 psi)Min.: 0 bar
(0 psi)- Head
Max.: 160 m
(524'11" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 300 °C
(572 °F)Min.: -50 °C
(-58 °F)
Description
Heavy duty seal-less mag drive horizontal centrifugal pump to ISO 5199 and ISO 2858 /EN 22858
100% leak free
Long life cycle, reduced maintenance costs
Flanges according to ISO 7005 PN 16
For stainless steel execution ISO 7005 PN20 / 150 lbs ANSI B 16.5 available
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Half open impeller with wear plate
Easy maintenance through the Back-Pull-Out principle
Atex certification
Outer rotor with safety bearing
Samarium Cobalt high performance magnets
Containment can in Hastelloy® for limited eddy current losses
Silicon carbide pump liquid lubricated internal bearings
Heating jackets optional
Grease or oil bath lubricated bearings
PT 100 temperature monitoring
Interchangeable with existing ISO 2858 pumps
Suitable for
Clean liquids, slightly contaminated liquids without abrasive or magnetic impurities
