Film impulse sealer Fermant 4 Flexi

foot-operatedhorizontalsachet

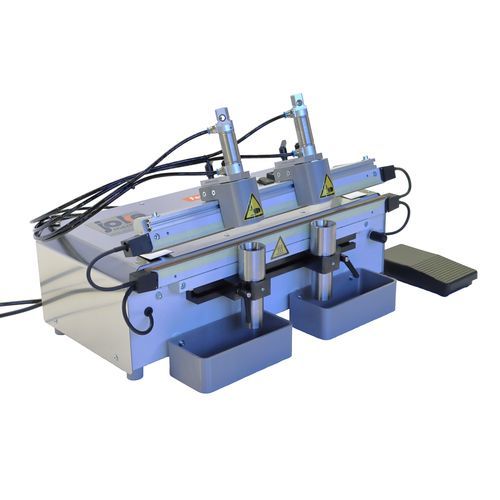

Film sealing device Fermant 4 Flexi, with pneumatic double hole punching device The Fermant 4 Flexi 2M-PDLS-WØ30 film sealing device is equipped with two magnets for higher contact pressure. The unit is prepared to accept a pneumatic double punch. The position in front of the rails is adjustable. Pneumatic double hole punching device PDLS-WØ30 Hole crown receptacle up to max.: Ø30mm Hole crown tool: Ø30mm The punch is mounted centrally in front of the rails, movable and the distance from the weld seam to the centre of the punch is 25 mm. Below the sealing bars, containers for punching waste are mounted, which can be adjusted to the position of the punch The pneumatics are connected directly to the external solenoid valve and work without a pressure reducer. Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 230 V • Operating : Foot switch • Film passage : 400 mm • Impulse time : continuously digitally adjustable • Cooling time : continuously digitally adjustable • Dimension (W x H x D) : • Range of action : 65 mm • Bar opening : 25 mm • Degree of protection : IP 20 • Max. sealing output : 2 x 0,4 mm PE-Foil
