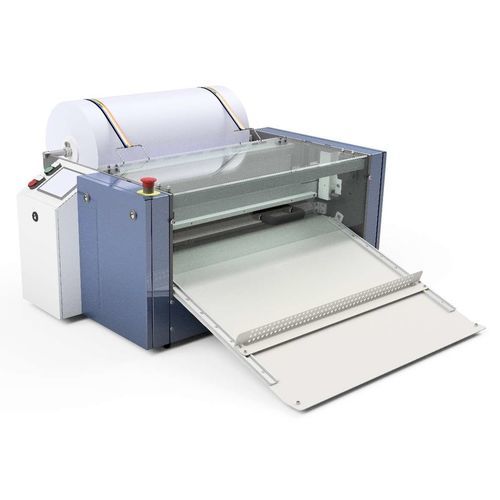

Automatic impulse sealer miniBagBoy 600

horizontalsachetbag

Standard equipment for miniBagBoy 600: - 1x Material Axle mini-Bag Boy 600 (2021941) 2 rings are included in the delivery (2x 2000795) - 2x Hub flange PA - Ø75,5x20 – Standard Part no. 2020340 - 2x Brake strap (2020344) complete with weight 650 g (2017515) Caution: for Bag length from 15-30mm an Antistatic system is required. Piece counter: pre-selection against silicone rubber on the lower knife Cutting: shear blade (cold) The advantages at a glance: • Outstanding price-performance ratio • Rapid and simple control • No compressed air required • Precise step motors • Touchscreen display for configuration of all parameters (forward feed, number of pulses, sealing and cooling time, number of items) • Compact, small design • Easy film roll change • Straight blade cut • Sealing impulse can be switched off • Both single web and multi-web films can be processed! Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 230 V • Working width : 600 mm • Bag length : step less adjustable from 15-4000mm • Operating : Touchscreen LCD Display • Colour : ultramarine blue • Type of film : flat film • Film Material : HDPE, LDPE • Film thickness : 10µ - 100µ • Throughput speed : 12 m/min • Weight : 90 kg • Impulse time : Impulse time • Dimension (W x H x D) : 1000 mm x 480 mm x 700 mm • Nominal width : 620 mm • Degree of protection : IP 20 • Sealing : upper sealing bar impulse-heated • Control : SPS
