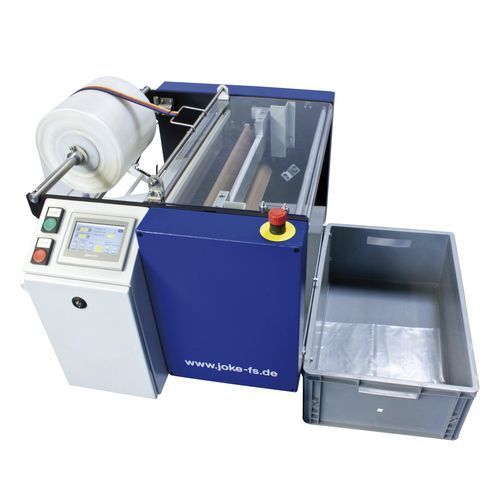

Automatic impulse sealer miniBagBoy 400/2

horizontalbagfor PE film

Standard equipment for miniBagBoy 600: - 1x Material Axle mini-Bag Boy 600 (2021941) - 2 rings are included in the delivery (2x 2000795) - 2x Hub flange PA - Ø75,5x20 – Standard Part no. 2020340 - 2x Brake strap (2020344) complete with weight 650 g (2017515) Caution: for Bag length from 15-30mm an Antistatic system is required. Piece counter: pre-selection against silicone rubber on the lower knife Cutting: shear blade (cold) Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 230 V • Working width : 400 mm • Bag length : stepless adjustable from 15 mm to 4000 mm • Operating : Touchscreen LCD Display • Colour : ultramarine blue • Type of film : flat film • Film Material : LDPE, HDPE • Film thickness : 10µ - 100µ • Throughput speed : 12 m/min • Weight : 80 kg • Impulse time : Impulse time • Cooling time : Impulse time • Dimension (W x H x D) : 800 mm x 480 mm x 700 mm • Nominal width : 420 mm • Degree of protection : IP 20 • Sealing : upper sealing bar impulse-heated • Control : SPS • Film roll diameter (max.) : 400 mm
