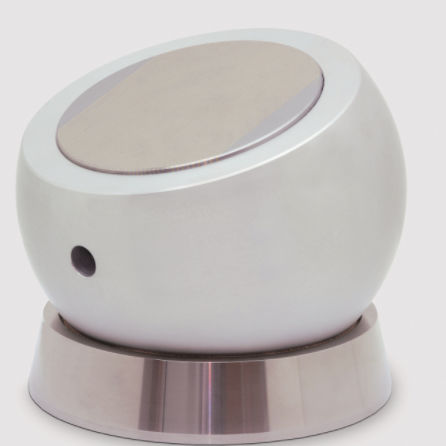

Angled ball joint Magic-Ball

Magnetic clamping balls joke Magic-Ball Comfortable and ergonomic 3-dimensional work. Ideal for polishing and welding workplaces. The Magic-Ball magnetic clamping balls bring your workpiece into almost any desired position. Depending on the workpiece geometry and weight, pivoting angles of up to 90º can be set. The balls are enclosed in leather-lined, chemically nickel-plated steel rings that hold them absolutely securely in any position – the sliding adhesion effect makes it possible! The powerful magnetic chuck of the Magic-Ball is activated using the key supplied (partial activation is also possible for optimum positioning of the workpiece). The balls available in four sizes are all of “Made in Germany” quality. Weight [kg]: - 17 kg Dimensions: - magnet (Ø): 160 mm ball (Ø x H): 218 x 164 mm Size: - Ø 160 mm Clamping force: - 100 N/cm² Pole pitch: - 1.5 + 0.5 mm
