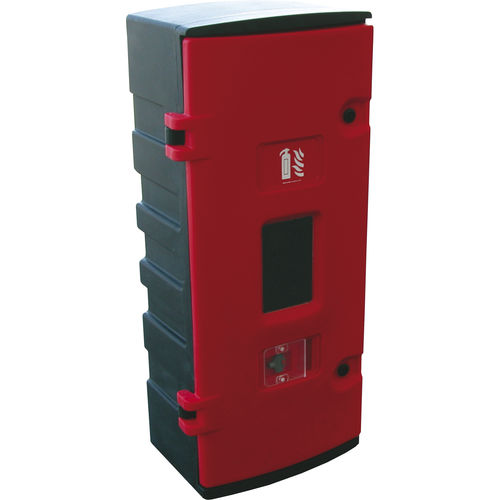

Wall-mount enclosure JBWB95, JBWE95, JBWR95

rectangularpolycarbonatefor fire extinguishers

A range of strong, durable top loading boxes for 5 kg fire extinguishers, available in a choice of sizes and access options Designed primarily for a 5 kg CO2 extinguisher with a large nozzle Access options: plastic toggle(s) OR break-glass facility Suitable for indoor / outdoor use UV blocking moulded-in polycarbonate windows Wall mountable Label(s) supplied loose Automotive grade rubber seal Left hinged mounting Other colours available upon request - Min. order 10 pieces For optional extras and accessories visit www.jonesco-plastics.com BREAK-GLASS FITMENT: The key for the cabinet is located behind a clear plate, which is held in place with two plastic fasteners. In an emergency, the clear plate can be broken away, providing access to the key for the cabinet. A new clear plate can be re-attached using the same plastic fasteners. OPTIONAL FACTORY FITTED ALARM: A reed switch activated 95 dB self-contained 9 V alarm with three minute automatic reset upon activation. Alarm does not interfere with use of equipment. To order, add the letter ‘A’ after a part number, e.g. JBWE70A.
