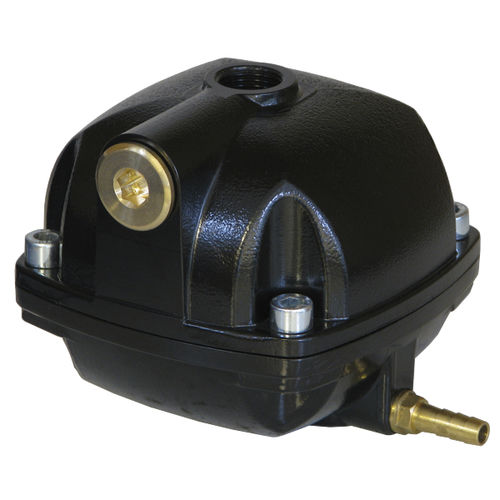

Condensate drain MAGY

airautomaticmagnetic

Magnetically operated zero air loss drain The MAGY is a magnetically operated level sensed drain that discharges condensate from all compressed air systems by using a unique technology based on magnetic forces. The MAGY uses specially selected magnets that operate the 2/2 way direct acting valve assembly. The discharge process of the MAGY is automatic and there is no loss of compressed air during the condensate discharge cycle. The specially selected long-life magnets ensure a high operation consistency. The MAGY is easy to install and to service due to the top and side inlet options. The MAGY is ideally suited in applications where power is not available, too expensive or not reliable. Typically the MAGY is installed in refrigerated dryers and under piston compressors. The MAGY features a specially treated robust aluminium housing suitable for oil lubricated and oil-free applications. The MAGY is also available with a test feature. The test button offers the solution to check your MAGY ensuring nothing is obstructing the orifice. It also allows you to depressurise the drain for those yearly maintenance moments. FEATURES MAGY optionally available with test button. Two inlet options Specially selected magnets operate the 2/2 way direct acting valve assembly Extremely compact with top and side inlet options Level sensed magnetic technology saves air, energy and money! No operating cost once installed Service kits available Direct acting valve, for a reliable discharge Robust corrosion resistant aluminium housing finished with an EP coating The direct acting valve is serviceable Also available with a test button
