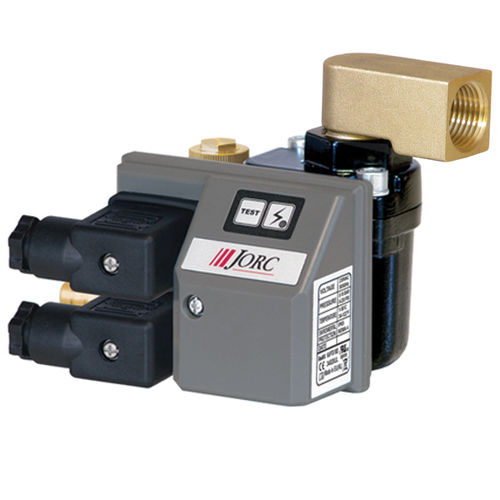

Condensate drain KAPTIV-MD-AL

airautomaticelectronic

Electronic condensate drain with alarm he KAPTIV-MD-AL is an electronic zero air loss drain with an alarm feature (potential free relay), suitable for applications up to 10 m3/min. (compressor capacity). The alarm contact options are: A1 (Normally Open contact) or A2 (Normally Closed contact). With features such as a test button, LED indication and automatic blockage detection, this energy saving electronic drain is the optimum choice for reliable, condensate removal when space is limited (overall height only 74 mm). To simplify the installation in restrictive height conditions, the side-inlet adapter is a useful tool. The KAPTIV-MD-AL’s incredible compact size is a real benefit in applications such as refrigerated dryers and filters. The KAPTIV-MD-AL can be applied in oil lubricated as well as oil-free applications. FEATURES Alarm contact options N/O or N/C. Incredibly compact. Large protective integrated mesh filter. Extremely compact and lightweight unit. True zero air loss solution. No sizing chart required, offering stock advantages. The serviceable valve offers maintenance opportunities. Visual alarm (LED indication). Alarm feature (potential free relay) incorporated. Easy to install due to its low inlet height. External valve position allows for fast and easy maintenance. Direct acting valve with FPM seal. Robust corrosion resistant aluminium housing. A large integrated mesh strainer. Consult JORC for private labelling options.
