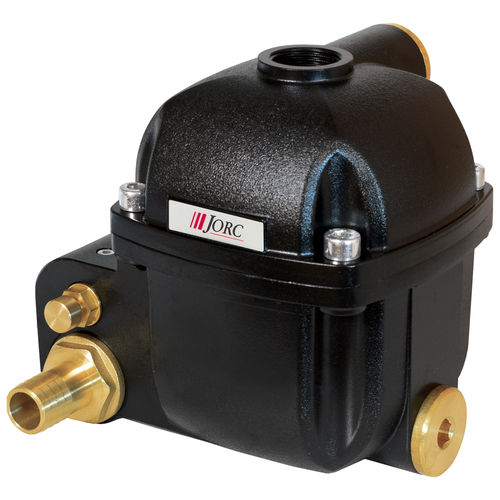

Condensate drain NUFORS-XF

airautomaticelectronic

Pneumatically operated condensate drain The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve. The NUFORS-XF is ideally suited in applications where power is not available, too expensive or not reliable. The NUFORS-XF features a specially treated robust aluminium housing suitable for oil lubricated and oil-free applications. In addition, the NUFORS-XF can be applied in applications that demand a higher enclosure protection rating. The NUFORS-XF offers an IP68/NEMA6 rating. FEATURES Three inlet options for easy installation. Test feature for routine testing. The NUFORS-XF on its optionally available mounting bracket. Suitable for large capacity compressed air applications up to 500 m³/min. No electricity required - install and go No operating costs Competitive ‘true green’ solution No complicated sizing charts required Consult JORC for private labeling options Level sensing drain technology Incredibly easy and quick to install and to service No complicated control air line and pressure regulator required Top- and side inlets available Test feature for routine testing Robust corrosion resistant aluminium housing Direct acting valve construction for a reliable condensate discharge operation Successful draining of, even heavily emulsified, condensate due to a large 12 mm valve orifice
