Condensate drain FLUIDRAIN®-COMBO
airtimer-controlledelectronic

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 2

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 3

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 4

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 5

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 6

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 7

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 8

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 9

Condensate drain - FLUIDRAIN®-COMBO - Jorc Industrial - air / timer-controlled / electronic - image - 10

Add to favorites

Compare this product

Characteristics

Medium

condensate, air

Operational mode

timer-controlled

Type

electronic

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Operating temperature

Min.: 1 °C
(34 °F)

Max.: 55 °C
(131 °F)

Description

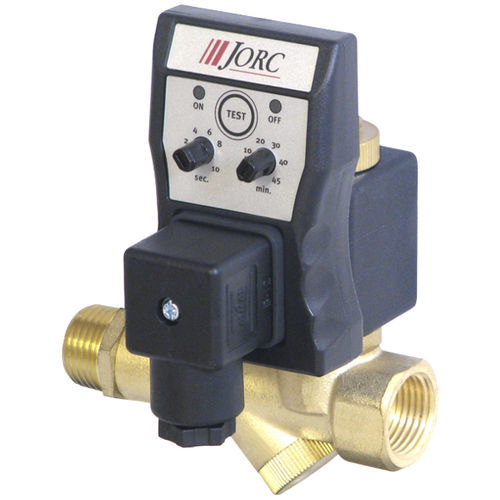

Electronic timer drain with integrated strainer The FLUIDRAIN-COMBO Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems. The FLUIDRAIN-COMBO saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out. FEATURES Integrated mesh strainer, offering valve and orifice protection from larger particles found in condensate. Integrated shut off valve, offering easy shut off of the valve for routine maintenance. Dual inlet (1/2" and 1/4"), offering you installation flexibility. Does not air-lock during operation. Installation time saver. Any type of compressed air systems and up to 16 bar. TEST (micro-switch) feature. Private labelling and colour options. Accurate time cycles. Premium PCB components selected.
