Roll-fed thermoformer DPP500for packagingautomated
Add to favorites
Compare this product
Characteristics
- Type
- roll-fed
- Applications
- for packaging
- Operational mode
- automated
- Maximum depth of draw
30 mm
(1 in)- Forming area x
485 mm
(19 in)- Forming area y
280 mm
(11 in)
Description

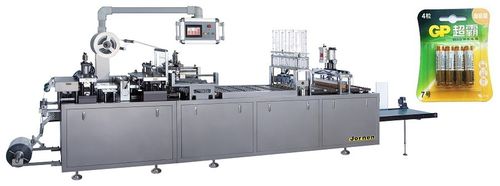

The plastic-cardboard Blister Machine DPP500 has a large forming area suitable for paper/PVC or alu/PVC blister packaging of batteries, electronic products, electric toys, cosmetics, etc.
Main Technical Parameters
Max. Speed: 20 punches/min.
Paper size: ≤260x150mm,150g-800g
Max. Forming Area: 485×280mm
Max Forming Depth: 30mm
Material: Max. width 500mm
Machine Power: 8.5kw
Machine Dimension: 4840×1200×2200mm
Machine Weight: 2500kg
