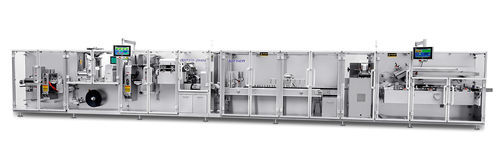

Blister packaging line BPL400P

for the pharmaceutical industryfor pharmaceutical productsfor medical applications

This Blister-Cartoner Line is combined with the BMP270H Blister Machine and ZH400i Cartoner. Through the integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Jornen’s innovative response to the need for high efficiency and low-cost operation, flexibility, and maximum productivity for mass batch production. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to the Blister module with forming material reels of up to 600mm in diameter and a waste material trimming cutter. ·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt. ·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to a servo-regulated robot that picks up blister cards and transfers them to the cartoning machine synchronously, the servo technology can precisely place one, two, or more blister cards (according to customer requirement) in each magazine. These accurately control blister transfer, positioning, and feeding, etc., to assure the stability of high running speed.
