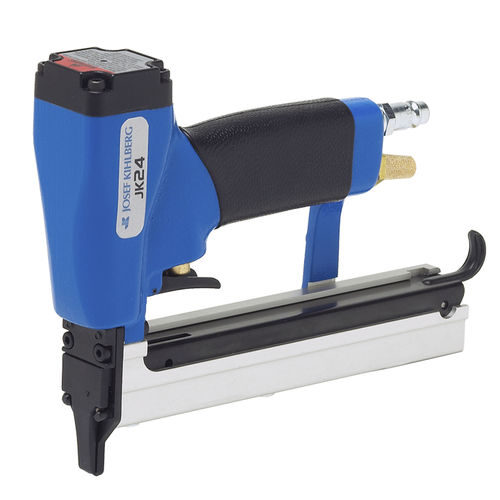

Pneumatic stapler JK24-690

for furnituredrawerfor boards

Stapler JK24-690 is a pneumatic, Swedish-manufactured very effective professional tool for the furniture industry. This single-shot tool is suitable for nailing boards on the backs of cabinet furnishings, bookshelves and drawer bottoms. Stapling of slide rails is another area of application. The JK24-690 has a negligible recoil, low weight and good balance. The magazine is loaded from the top, preventing accidental firing in the direction of the operator’s face during loading. The design of the nose enables high-precision stapling. The long nose has a pivoting door that can be easily opened when cleaning is required. The design of the nose allows nailing in confined spaces and in slots and grooves. The stapler has a low noise level thanks to an effective muffler. If a tool for shorter leg lengths is needed, we recommend the JK20-690. Technical Data Article No. 126167 Weight 1.1 kg ( 2.4 lbs ) Dimensions 230 × 43 × 188 mm ( 9.1 x 1.7 x 7.4 in ) Magazine capacity 125 fasteners Staple leg length 12 - 19 mm ( 1/2 - 3/4 in ) Max. pressure 7 bar ( 102 psi ) Nose length 20 mm ( 0.8 in ) Leg length 230 mm ( in ) Lubrication Yes Nose length 20 mm ( 0.8 in )
