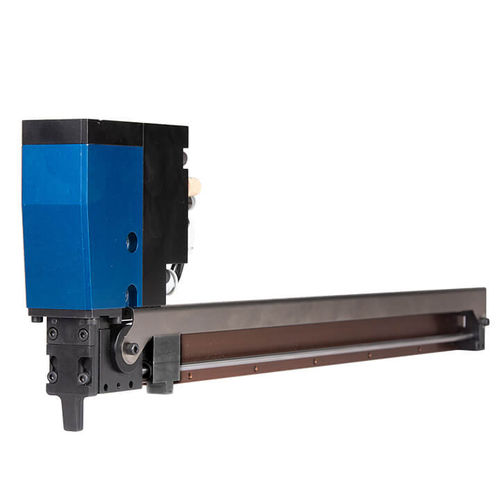

Pneumatic stapling machine A1L690

electricfor production lineswith 1 head

JK A-Fast A1L690 automation fastening system is built for 24/7 operations with a flawless uptime. The long magazine capacity model L is excellent for production lines where a lot of material needs to be processed. The unit has a high firing rate up to 750 rounds per minute. Moreover, the unit has a magazine sensor for full control over loading status and a feeding controller for full control of staple consumption. It´s durable with top of the line quality components engineered together for perfect performance and use a single connector for all functions. Making the system easy to integrate and operate in any production line. It is available in both pneumatic and electric actuation. Read more about our automated fastening systems. Technical Data Article No. 126502 Weight 2.8 kg ( 6.2 lbs ) Dimensions 543 × 47 × 175 mm ( 21.4 x 1.9 x 6.9 in ) Magazine capacity 375 fasteners Staple leg length 12 - 22 mm ( 1/4 - 7/8 in ) Max. pressure 7 bar ( 102 psi ) Nose length 21.5 mm ( 0.8 in ) Speed (actuation time) 50 ms Power supply 24V DC, sensor type PNP Working pressure 5 - 6 bar ( 70 - 90 psi ) Actuation Electric or pneumatic Electric connector Yes Magazine sensor Yes Feeding controller Yes Nose length 21.5 mm ( 0.8 in )
