Printed circuit board microphone COM-MIC-ADPM401MEMSomnidirectionalsmall-size
Add to favorites
Compare this product
Characteristics
- Applications
- for printed circuit boards
- Technology
- MEMS
- Polar pattern
- omnidirectional
- Other characteristics
- small-size
Description

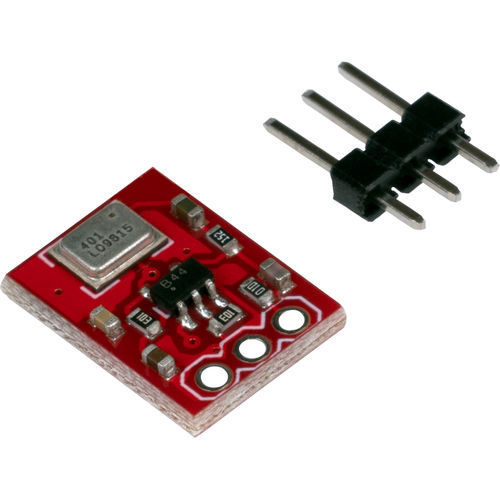

This tiny breakout board features the ADMP401 MEMS microphone. One of the key advantages of this breakout and microphone is the bottom ported input. This means the microphone's input can fit flush against the enclosure of your project. Due to the enclosed pin headers, the application of these microphones is variable.
SPECIAL FEATURE
SUPPLY VOLTAGE
1.5 - 3.3 V DC
SUPPLY CURRENT
250 μA
SIGNAL-TO-NOISE RATIO (SNR)
62 dBA
MAXIMUM ACOUSTIC INPUT
120 dB SPL
EQUIVALENT INPUT NOISE (EIN)
32 dBA SPL
TOTAL HARMONIC DISTORTION (THD)
3% at 105 dB SPL
ROLL OFF
-3dB at 60 Hz and 15 kHz
OPERATING TEMPERATURE
-40 to 85 °C
DIMENSIONS
14 x 10 x 10 mm
