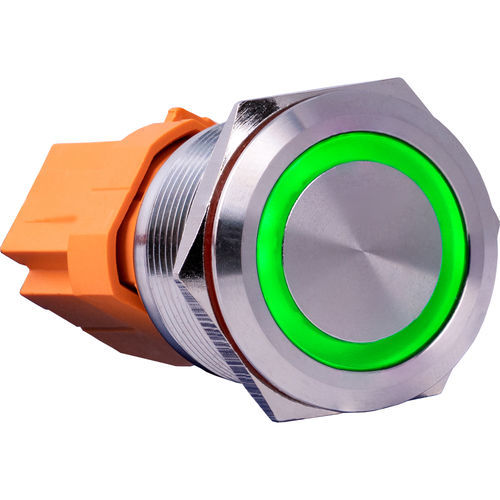

IP67 push-button switch Button22C-M-GR

stainless steelgreen LEDmomentary

Our momentary steel push button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 ( dust and water ), IK10 ( impact ) and PA66 ( flame ). The protection classes, the wide temperature range and the durability make our steel push button suitable for many applications. The steel push button has a bright LED ring ( green ). Due to the concave design of the surface, there are no sharp edges. The connecting cables and the sockets have different colours and shapes, so that confusing the push button variants ( 22A / 22B / 22C ) is impossible. The necessary connection cables, socket, sealing ring and nut are already included in the scope of delivery. SPECIAL CHARACTERISTICS High-luminous green LED ring OPERATION MODE Momentary KEY DEPTH 3.5 mm SWITCHING CURRENT 15 A RATED LOAD 15 A / 250 V resistive 4 A / 250 V inductive LED VOLTAGE 3 - 8 V DC LED LIFESPAN 40,000 hours CONNECTORS 2x NO1, 2x N02 ISOLATION RESISTANCE ≥ 1000 MΩ BREAKDOWN VOLTAGE 1000 V AC min. CONTACT RESISTANCE ≤ 50 mΩ CORE AND SHELL MATERIAL Stainless steel CONNECTOR MATERIAL Flame retardant PA66 CONTACT MATERIAL Silver PIN MATERIAL H65 gold-plated PROTECTION LEVEL IP67, IK10 NUT TORQUE 5 - 14 Nm DIMENSIONS MOUNTING HOLE Ø 22.2 x ≤9 mm DIMENSIONS Ø 24,8 x 34,5 mm WEIGHT 42 g ITEMS SHIPPED Push button, socket, sealing ring, nut, 4x 150mm cables
