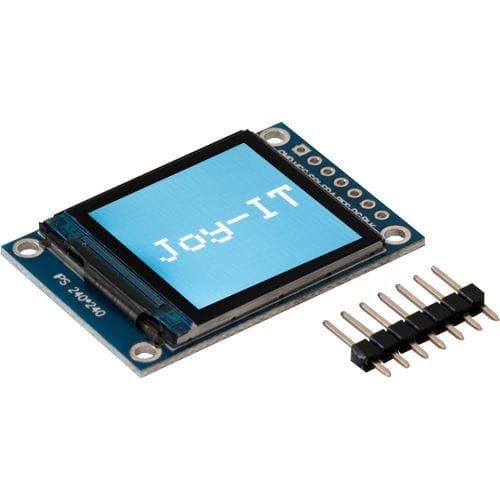

TFT display SBC-LCD01IPS240 x 240high-definition
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS
- Format
- 240 x 240, high-definition
- Screen size
- 1.3"
- Applications
- control
- Structure
- compact
Description
This IPS TFT display is controlled via SPI. This makes it suitable for use as an output device for microcontrollers (e.g. NodeMCU) and single-board computers (e.g. Raspberry Pi). By using a high-resolution IPS panel with a pixel density of over 260 PPI, content can be displayed in high-resolution on the compact display.
CONTROL CHIP
ST7789VW
SUPPLY VOLTAGE
3.3 V
SUPPLY CURRENT
8 - 10 mA
LOGIC LEVEL VOLTAGE
3.3 V
BRIGHTNESS
300 - 350 cd/m²
CONTRAST
640 - 800 : 1
RESPONSE TIME
30 - 35 ms
OPERATION TEMPERATURE
- 20 °C - 70 °C
DIMENSIONS
30 x 27 x 10 mm
