Signal generator JDS6600

pulsefrequency1-channel

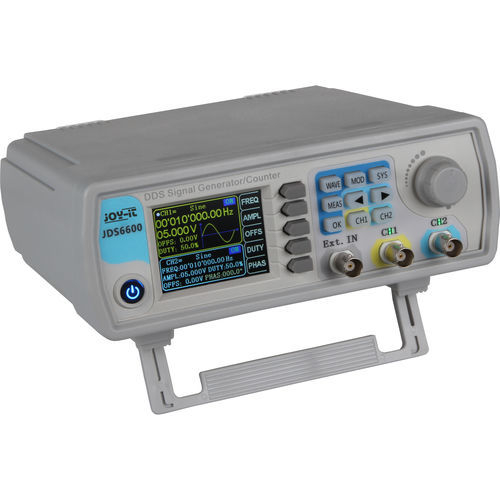

The JT-JDS6600 is a 2 channel signal generator which produces signals up to 60 MHz. It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others. Additionally, it is an 1 channel frequency allocation integrated. With its frequency accuracy of ±20ppm and its stability of ±1ppm/3h, it offers a perfect signal quality and flexibility. Through its 2,4“ TFT-Colordisplay it has the operator friendliness guaranteed which reveals most diverse areas of application. FEATURES 2 Channel Signalgenerator; Signal-Forms: Sine, square, triangle, pulse, half-wave, noise, Lorenz pulse, exponential rise/fall, CMOS and more; 1 Channel Frequency-Counter FREQUENCY-RANGE (SINE) 0 - 60MHz FREQUENCY-RANGE (SQUARE, TRIANGLE) 0 - 15MHz FREQUENCY-RANGE (PWM, CMOS, TTL, ARBITRARY) 0 - 6MHz MEASURING RANGE FREQUENCY COUNTER 0 - 100Mhz MIN. FREQUENCY RESOLUTION 0,01μHz FREQUENCY ACCUARACY +-20ppm FREQUENCY STABILITY +-1ppm/3h DISPLAY MODE TFT LCD Color display DISPLAY SIZE 2,4“ OPERATING TEMPERATURE AND HUMIDITY Temperature: 0 - 40°C / Humidity: <80% DIMENSIONS 194 x 178 x 69 mm WEIGHT 768 g ITEMS SHIPPED Signalgenerator, 2x BNC Signal terminals, power supply
