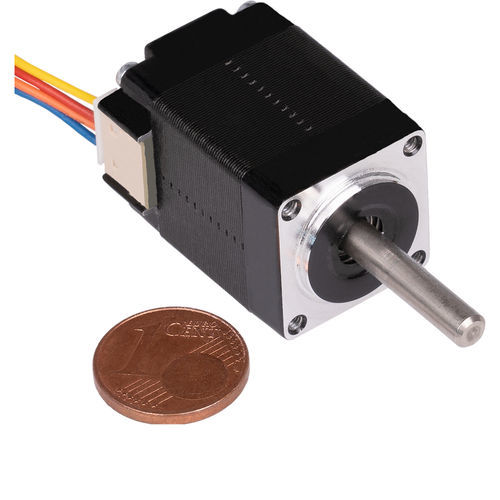

Two-phase stepper motor NEMA08-013 Vsmallindustrial
Add to favorites
Compare this product
Characteristics
- Type
- two-phase stepper
- Voltage
- 3 V
- Configuration
- small
- Applications
- industrial, for pump, spindle
- Intensity
0.6 A
- Torque
0.018 Nm
(0.01328 ft.lb)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 50 °C
(122 °F)
Description
Our NEMA 8 series are very small high torque stepper motors that can reach up to 3000 rpm.
These motors are used in the model making and maker scene as well as in the industrial environment (e. g. positioning of optics, dosing pumps, interlocks, etc.).
SHAFT DIMENSIONS
Ø 4 x 18.5 mm
CONNECTION
6 pin JST socket
CABLE LENGTH
400 mm
RATED VOLTAGE
3.9 V
STEP ANGLE
1.8 ° ±5 %
PHASE RESISTANCE
6.5 Ω
PHASE INDUCTIVITY
1.7 mH
ISOLATION RESISTANCE
100 MΩ min. @500V DC
ISOLATION CLASS
B (130°C)
ROTATIONAL INERTIA
2 g·cm²
DETENT TORQUE
2 mNm
DIMENSIONS
20 x 22 x 30 mm
WEIGHT
60 g
