IC DC/DC converter SBC-Buck01switching
Add to favorites
Compare this product
Characteristics
- Configuration
- IC
- Other characteristics
- switching
- Input voltage
Max.: 35 V
Min.: 4 V
- Output voltage
Max.: 34 V
Min.: 3 V
- Power
15 W
Description

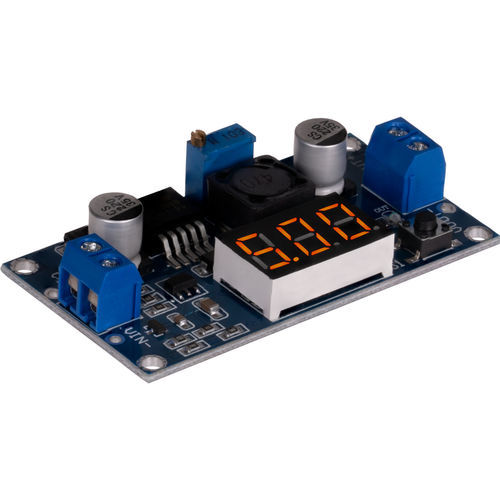

This is a voltage converter based on the DC-DC module LM2596S. The voltage can be adjusted by means of the potentiometer with an accuracy of ± 0.1 V (DC).
The integrated segment display can additionally be switched between the input and the output voltage via the knob.
SWITCHING REGULATOR
LM2596S
SPECIAL FUNCTIONS
Adjustment via potentiometer, Control via Segment display
INPUT VOLTAGE
4 - 35 V (DC)
INPUT CURRENT
≤ 2 A
OUTPUT VOLTAGE
3 - 34 V (DC)
OUTPUT CURRENT
≤ 2 A
OUTPUT POWER
Max. 15 W
ACCURACY
± 0.1 V (DC)
DIMENSIONS
67 x 37 x 15 mm
WEIGHT
22 g
