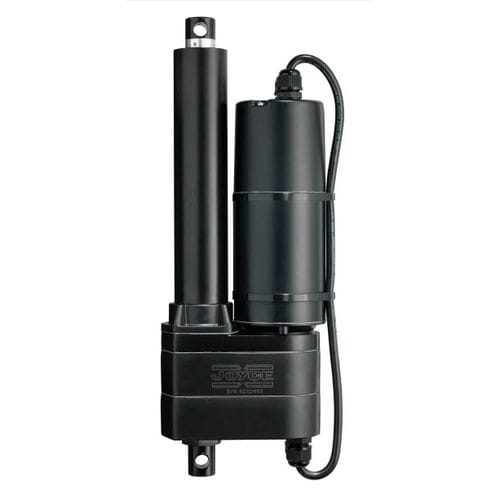

Electric cylinder MA1527, MA3507 series
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Stroke
Max.: 457 mm
(17.992 in)Min.: 153 mm
(6.024 in)- Force
Max.: 3,500 N
Min.: 0 N
- Speed
Max.: 23 m/s
(75.46 ft/s)Min.: 6 m/s
(19.69 ft/s)
Description
Joyce MA1527 and MA3507, multipurpose linear actuators are compact, versatile and designed to lift 3500N (787 pounds) dynamic load, and 4500N (1012 pounds) static load. Each 120 VAC actuator is equipped with a potentiometer and adjustable, preset limit switches, and offers an IP65 rating that qualifies it for many wash-down and outdoor duty applications.
Clevis-to-clevis mounting
Stroke lengths of 153 mm (6 in.), 305 mm (12 in.), and 457 mm (18 in.)
Self-locking
25% duty cycle
Steel extension tube and outer tube
