Flat electrical cable powerboard-to-boardinsulated
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- board-to-board
- Protection
- insulated
- Configuration
- stranded, round, flat, flat flexible cable
- Core material
- copper
- Applications
- industrial, for telecom applications
- Material of the insulation
- PVC-sheathed
- Other characteristics
- high-resistance
Description

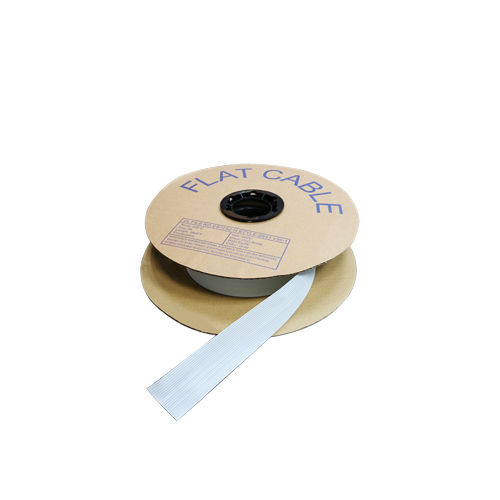

1.0 Pitch, PVC, Gray Color
Overview/Description
Flat Cable which can be soldered or inserted to achieve board to board interconnections. These flat flexible cable with round pins are made up of tin plated copper insulated with PVC, TPE. Flat-round technology allows for a high resistance to vibration and bending. Available in several pitches including 0.635~2.54mm pitches, they are easy and fast to install.
- Benefits / Features
High resistance to bending and vibration.
- Specification
1.Pitch : 1.0mm
2.Number of Conductors : 2~68pin
3.Insulation Material : PVC
4.Color : Gray
5.Conductor : Srtand, 7/0.102(28AWG)
6..UL Style : 20674
7.Flame Test : VW-1
8.Package : 250FT/Roll, 500FT/Roll, 1000FT/Roll
