Protocol converter gateway JPE 61850 Papilio

communicationindustrialtelemetry

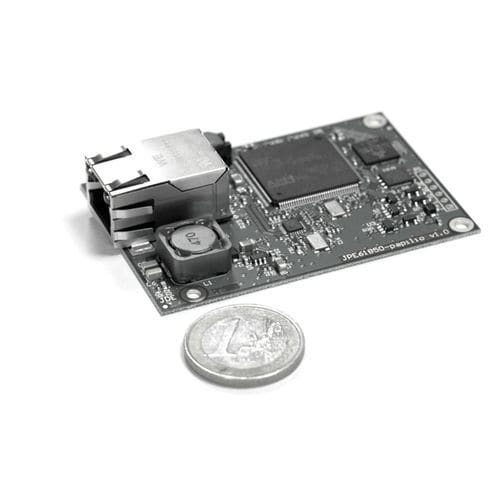

JPEmbedded’s PAPILIO protocol converter enables communication between the Intelligent Electronic Devices (IED’s) in the power smart grids, IoT devices, industrial fieldbuses, and Google Cloud. The PAPILIO gateway supports the most popular protocols, including IEC 61850, DNP3, IEC 60870-5-103, MQTT, Modbus TCP, Modbus RTU, and others, also proprietary ones. Depending on the firmware version, the converter may work as (some examples): * Modbus to IEC 61850 protocol converter * MQTT to IEC 61850 protocol converter * Modbus to DNP3 protocol converter * MQTT to IEC 61850 protocol converter * IEC 61850 to Google Cloud Platform protocol converter * DNP3 to Google Cloud Platform protocol converter * DNP3 to IEC 61850 protocol converter * DNP3 to IEC 60870-5-104 protocol converter * Modbus to Google Cloud Platform protocol converter * IEC 60870-5-103 to IEC 61850 protocol converter * IEC 60870-5-101 to IEC 61850 protocol converter The list of supported conversions could be easily expanded (contact us for details). Key features of the PAPILIO protocol converter: * Conversion of various protocols (ex. IEC 61850, Modbus RTU, Modbus TCP, IEC 60870-5-103, IEC 60870-5-104, DNP3, MQTT) between each other * Certified IEC 61850 stack * Two physical interfaces: UART and Ethernet * Intuitive configuration and protocol mapping thanks to a dedicated Drosera application * Low-cost solution
