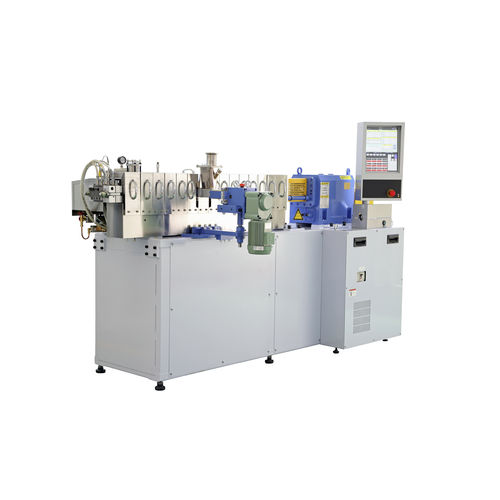

Screw extruder for the plastics industry TEX25αⅢ
pharmaceuticalfor thermoplasticsfor hot-melt

Screw extruder for the plastics industry - TEX25αⅢ - JSW The Japan Steel Works, Ltd. - pharmaceutical / for thermoplastics / for hot-melt
Screw extruder for the plastics industry - TEX25αⅢ - JSW The Japan Steel Works, Ltd. - pharmaceutical / for thermoplastics / for hot-melt
Add to favorites
Compare this product


Characteristics

Applications
for the plastics industry, pharmaceutical
Treated material
for thermoplastics, for hot-melt
Number of screws
twin-screw
Other characteristics
for masterbatch, with underwater pelletizing, high-throughput, compact, laboratory, flexible, liquid injection nozzle, side feed, with mixing simulation software, with vacuum pump
Screw diameter

25 mm
(1 in)

Maximum speed

740 rpm
(4,650 rad.min-1)

Torque

387 Nm
(285 ft.lb)

Overall length

2,200 mm
(87 in)

Overall width

950 mm
(37 in)

Total height

1,600 mm
(63 in)

Weight

1,200 kg
(2,646 lb)

Power

30 kW
(40.79 hp)

Description

Magnesium Injection Molding Machine is based on the Thixomolding™ technology (injection molding of a thixotropic, semisolid magnesium alloy). Features Use of magnesium alloy chips eliminates need for melting furnace and allows easier switching between alloys. High-speed injection and high injection pressure improve surface quality of application and make precision molding of thin parts possible. Lower temperature of molten magnesium alloy improves dimensional accuracy and mechanical properties. Provides the precision and thin wall molding. Fully sealed molding process enables cleaner, safer work enviroment. Gentle to the Earth, the process requires no global warming gas, such as SF6 or flux. Product Details "Magnesium alloyed metal".That is the lightest of all metals with practical applications, recyclable and earth-friendly materials. The magnesium alloy injection molding machine developed by JSW can mold materials with the same degree of precision as plastics, and can therefore be applied to produce a wide range of components for automobiles, personal computers, cameras, mobile phones, and others. JSW offers magnesium alloys in all kinds of shapes to customers in all kinds of industries. Information on Magnesium and Thixomolding™ The myriad features of Magnesium makes its way into various areas of industry. What is Magnesium? Thixomolding™? Thixomolding™ chip? We will guide you to the Magnesium and Thixomolding™ world. Magnesium Basic information of Magnesium Features of Magnesium Applications of Magnesium Thixomolding™ Process and Magnesium Thixomolding™ machines Mechanical Property of Magnesium Surface Property and Anti Corrosion Feature of Magnesium
