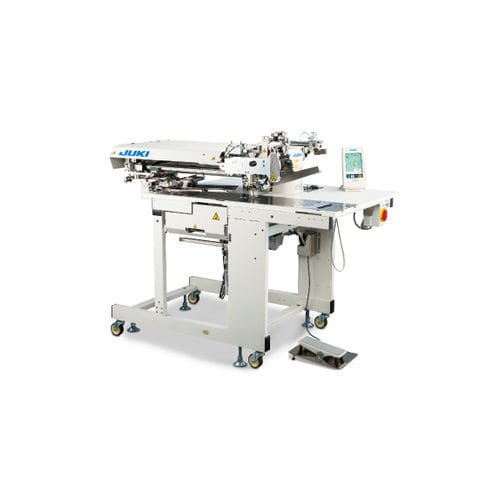

Lockstitch Automatic Welting Machine (for straight pockets without flaps)
APW-895NE provides excellent performance and high productivity in welting, such as slacks and working pants. It comes with a high-speed machine head that is able to perform sewing at 3,000 sti/min at the maximum. Even an inexperienced operator can easy sewing slacks and working pants by just placing the fabric on the welting machine and carrying out the start operation.
It comes with a high-speed machine head that is able to perform sewing at 3,000 sti/min at the maximum.
Selection of a sewing position by control panel
APW-895NE is equipped with a function to select a sewing position (from the operator side, from the counter operator side, at the center of the sewing length) when changing the length of the pocket.
Note that the moving marker (option) is required if you wish to automatically move the marker line.
Adjustment of the corner knife
The corner knives, which can be drawn out in the entire knife unit is adopted.
The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material cutting with accuracy. Loosen the screw and manually adjust the position of corner knives.
Pocket bag presser device
When performing welting of slacks and working pants, the pocket bag presser device clamps the pocket bag for sewing it simultaneously with welting.
The dart stretcher clamps the end of material to smooth out the wrinkles on a garment body, thereby allowing the sewing machine to perform welting with consistency.
One-shot operation pedal is adopted to start the sewing machine.
