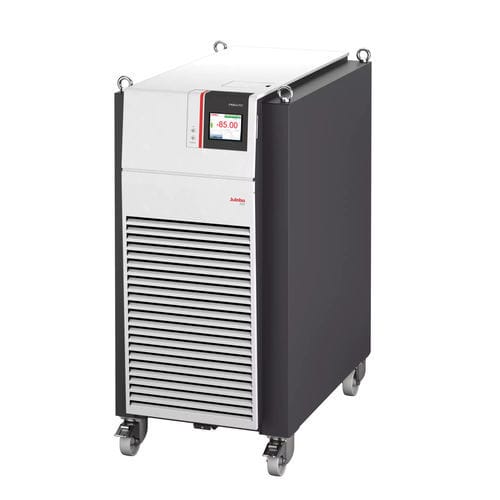

Dynamic temperature control system PRESTO A85

High cooling capacities enable extremely low temperatures down to -85 °C possible. The high heating capacity, particularly with the A85t and the W85t, provides even more flexibility in the application. The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems. Product Features • Cooling capacity up to 2.8 kW • External Pt100 sensor connection • Connections for alarm-output, Pt100 external sensor and standby-input • Analog connections, RS485, Profibus DP (accessory) • Built-in 5.7’’ industrial color touchscreen • Second external Pt100 sensor connection (accessory) • Alarm output • Heating capacity up to 15 kW • Temperature stability ±0.05 °C ... ±0.1 °C • Pump pressure up to 3 bar, max. flow rate 80 l/min • removable ventilation grid
