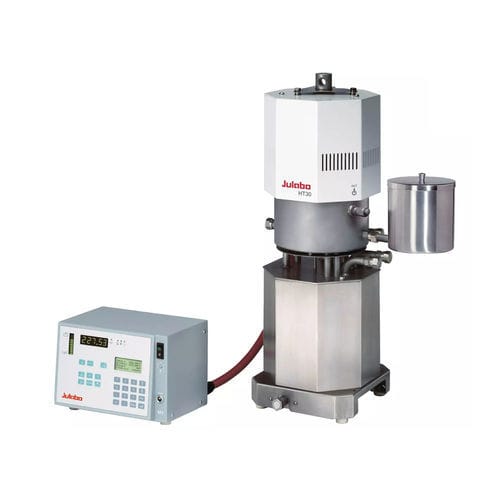

High temperature heating circulator HT30-M1

JULABO high temperature circulators can be used for temperature applications up to +400 °C. The units provide powerful heating capacities for shortest heat-up times and rapid compensation of exothermic and endothermic reactions. The closed construction prevents oil fumes even at high temperatures. The units provide automatic heat-up and cracking protection to ensure long life-time of the bath fluid. The filling system automatically purges the fluid system of air. Units with model designation ‚C.U.‘ are equipped with a powerful cooling unit for tap water connection. This allows for temperature applications already at +20 °C and for rapid cooling. Typical applications: Reactors, autoclaves, distillation columns, miniplant installations, pilot plants and production facilities. Product Features • Self-optimizing ICC temperature controller • Strong pumping capacity 18 l/min - 1.2 bar max • Automatic air-purge allows easy filling • Backlit interactive 4-line LCD display • Electronic level indication • Integrated programmer for 6 x 60 program steps • Integrated programmer stores up to 6 profiles (60 sections each) • High heating capacity for short heat-up times • ATC function for simple correction of temperature variations • Small filling volume • Easy to integrate into installations due to the modular concept (separation of circulator and operating panel) • Various interfaces • Reduction of pump pressure via bypass (accessory)
