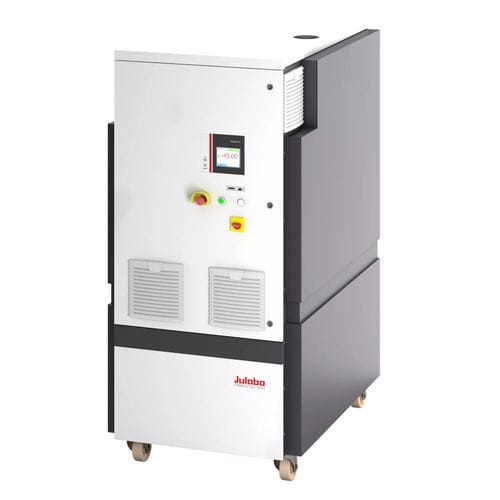

Dynamic temperature control system PRESTO W93x

W93 process systems offer users high cooling capacity for dynamic applications even in the lowest temperature ranges. They work with natural refrigerants and are also very energy efficient thanks to state-of-the-art technologies. The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems. Product Features • External Pt100 sensor connection • Alarm output • Second external Pt100 sensor connection (accessory) • Built-in 5.7’’ industrial color touchscreen • Cooling capacity up to 19.5 kW • Heating capacity up to 27 kW • Analog connections, RS485, Profibus DP (accessory) • Temperature stability ±0.05 °C ... ±0.2 °C • Integrated gas warning sensor, electrically wired and calibrated • Intelligent warning and safety functions • Ambient temperature range +5 °C to +40 °C • Pump pressure up to 5.5 bar, max. flow rate 70 l/min
