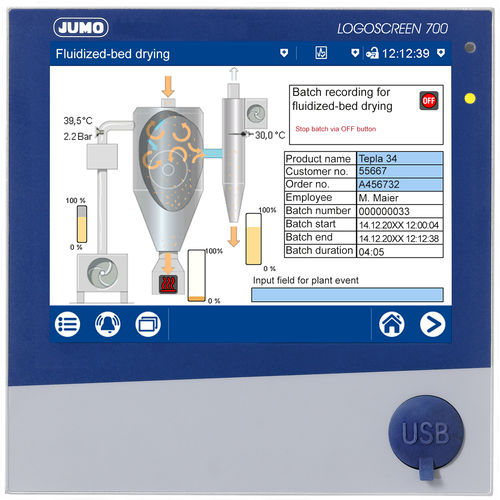

Paperless recorder LOGOSCREEN 700

temperatureindustrialwith touchscreen

The JUMO LOGOSCREEN 700 paperless recorder is characterized by an intuitive, icon-based operation and visualization concept that makes operation easy. It is available in multiple versions for process data acquisition and can be adapted flexibly. • Intuitive touch operation • PROFINET IO device available • 10 customer-specific process screens Measurement inputs - Max. 18 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital) Digital inputs (solid) - Max. 18 digital inputs (4 Hz), 2 inputs up to 12.5 kHz Digital inputs/outputs (switchable) - Max. 24 digital inputs/outputs, 2 inputs up to 12.5 kHz Analog outputs - Max. 3 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA Interfaces - RS232/485 for barcode reader, USB (host/device), Modbus master/slave (RS485/TCP), Ethernet or PROFINET Relay (changeover contact) - 1 relay (changeover contact)/6 relays (changeover contacts) optionally Display - 5.7 inch TFT color screen Internal memory - 1 GB External storage media - USB flash drive Memory cycle - 125 ms to 32000 s Front panel - Zinc die-cast with decor foil (144 × 144 mm format) Approvals - c ULus, FDA compliant according to 21 CFR Part 11 (extra code 888), AMS2750/CQI-9 (extra code)
