Modular multichannel measuring device (liquid analysis)

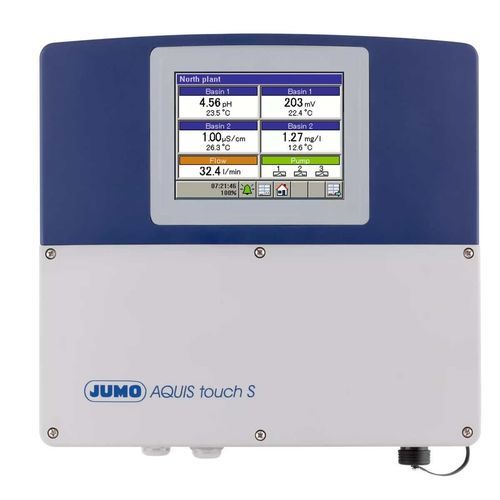

JUMO AQUIS touch S
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate.
21 additional measuring signals can be connected
4 analysis inputs in any combination
17 configurable switching outputs
general technical dates
Features -
5.5" touchscreen; 14 inputs and outputs that are part of the standard equipment; 13 slots for input and output modules; modular design; customer-specific process screen; data monitor, recording function, web browser with online visualization; timer functions; math and logic functions; setup program, PC Evaluation Software (PCA3000), PCA Communication Software (PCC); calibration routines, calibration logbooks, calibration timer; up to 6 additional JUMO digiLine sensors can be connected
Mounting -
Surface-mounted housing
Approvals -
cULus
Interfaces -
Ethernet, USB host, USB device (setup), RS422/RS485 with Modbus protocol, PROFIBUS DP, PROFINET
Protection type -
IP67
Areas of application -
Suitable for universal use; water and wastewater engineering; food and beverage industry (CIP/SIP); pharmaceuticals and biotechnology (USP, ASTM); drinking water technology, desalination of seawater; process technology (rinsing baths, electroplating plants, cooling tower control, gas/air washer); swimming pool technology
