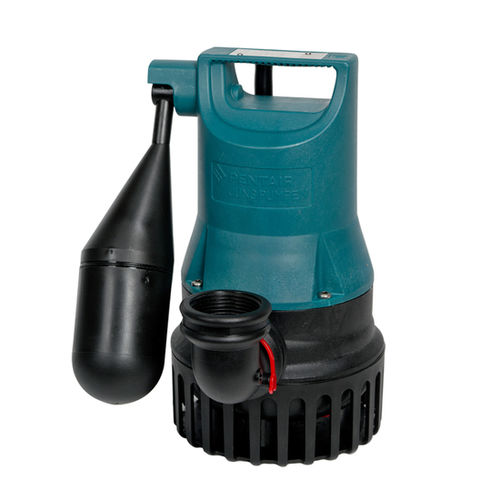

Water pump U3 spezial
wastewatercondensatewhey

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, wastewater, condensate, whey
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
discharge, cooling, drainage, washing
Protection level
IP68
Other characteristics
mechanical, standard, mobile, combined
Flow

Max.: 6.5 m³/h
(229.54533 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Power

0.22 kW, 0.32 kW
(0.3 hp, 0.44 hp)

Width

276 mm
(10.87 in)

Height

255 mm
(10.04 in)

Weight

3.7 kg, 4.1 kg, 4.4 kg
(8.16 lb, 9.04 lb, 9.7 lb)

Description

The pump for aggressive saline waste water For saline solutions up to 15 % salinity Cooling jacket for motor housing Low level pumping by detachable strainer base Flushing device activatable and deactivatable Variable discharge branch with closable ventilation Safe to run dry EIP Technology SiC mechanical seal Moisture sealed cable inlet The U3 K(S) special is a variant of the U3 K(S) designed to pump aggressive media such as brine from water softeners, brackish water, condensate from gas condensing boilers, silage liquid, whey or liquid fertilizer. Residential grey water from dish washers or washing machines (even boil wash program) or outdoor applications like drainage or rainwater can easily be handled by this pump. Depending on the application it can be used either in a fix installation or as a mobile pump. For fix installations the pump can be combined with existing sumps but also with a variety of our chemically resistant tanks. Aggressive media are not precicely specified and occur in countless different compositions. In order to provide reliability and warranty, please contact our technical support for consultance. The U3 K(S) spezial provides the same technical features like the standard model U3 K(S). Guide rail systems offer the advantages of quick and easy maintenance. The Easyfix installation sets are particularly convenient. They are pre-assembled ready to plug in and can be installed as single or duplex systems. Despite its high range of possible applications, the U3 K(S) spezial must not be used to pump effluent containing faeces or wastewater from urinal systems.

Catalogs

No catalogs are available for this product.

See all of JUNG PUMPEN‘s catalogs
