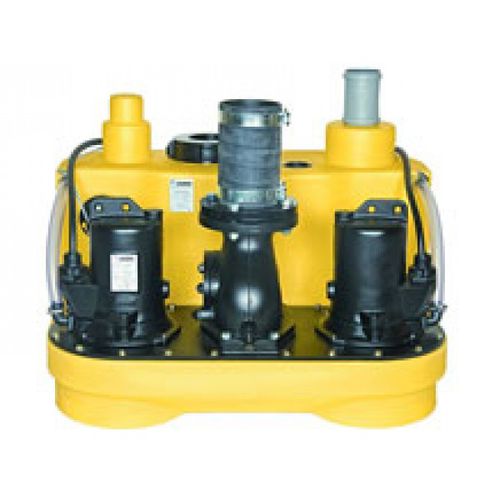

Sewage lifting unit COMPLI 1000/1000 HL series

Duplex lifting station for commercial use Areas of application: Gastronomy, industry or apartment buildings 5-year warranty for specialist tradesmen when registered at www.hauptsachejung.de/en Made in Germany With modern HighLogo microprocessor control unit Ready to connect Submersible Duplex swing-type check valve Versatile connection facilities PE-tank 117 l Vortex impeller Smart home compatible With their performance graduations, the Compli 1000 and Compli 1000 HL disposal units have been designed for use in detached houses, in several residential units or in commercial buildings. During the design work, special attention was given to easy handling, space-saving and uncomplicated installation. The submersible unit is permitted for general use in areas subject to flooding. The control unit has to be fitted in a well ventilated flood-proof room. The PE tank has freely accessible drains, a cleaning opening at the top and a clamp-type inlet flange for an installation. For the connection of a DN 100 feeding pipe a reducer DN 150/100 is enclosed. The tank has vertical inlet in DN 150 or DN 100. If not in use, the rear inlet must be closed with the plug set DN 150 (accessory). The vortex impeller of the pump with a70 mm free passage offers the safety you can rely on. Duplex systems have two pump units on one tank which are switched alternately or, if required, they are operated both in order to cope with peak load or reserve operation. The Compli lifting stations are available with modern microprocessor control unit (HighLogo).
