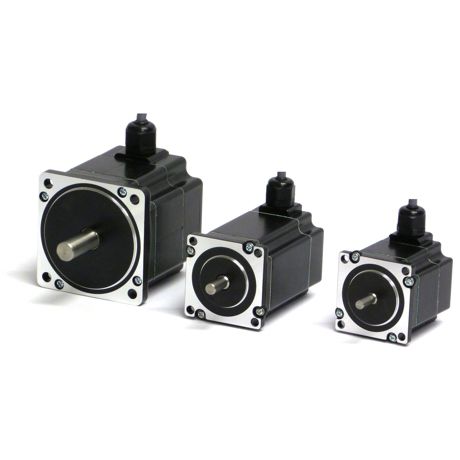

DC motor MSW23 series

stepper24 V12 V

A series of step motors with IP67 protection have been designed by JVL for use with the entire range of JVL Step Motor Drivers and Controllers. Torque from 0,5Nm to 8,2Nm. Even shaft sealing can be IP67 for underwater or harsh industrial operation. • Special IP67 sealing at rear end and between stator and flanges • Special Teflon IP67 shaft sealing • Cost-Effective in harsh wet environment • Ideal for food processing, pharmaceutical and chemical industries • A double shaft seal and leak-proof cable entry provide watertight sealing • The material of shaft is stainless steel SUS303/EN 1.4305/AISI303 • 2 phase motor. 200 step/rev. • High torque-to-inertia for faster start and stop • Rugged design and long life bearings • High power, cooler running, rare-earth magnet design • Exposed-lamination housing, optimized for high torque and smooth, accurate microstepping • NEMA23 (57x57mm), NEMA26(60x60mm) and NEMA34 (86x86mm) mounting • Very short length and very high torque/mm3 • High axial and radial shaft load • Cost-effective alternative to servo motors • All motors are D-shaped Optional on request: • IP65 or no shaft sealing for low cost OEM project • M12 high current or M16 connector for OEM • Facilities for encoders and different shaft types, etc. • Stainless steel endbell and flange • Thick protective layer of epoxy surface treatment bonded to the motor body • Build in driver or controller.
