Planetary gear reducer HTRG-U
coaxial20 - 50 Nm100 - 200 Nm

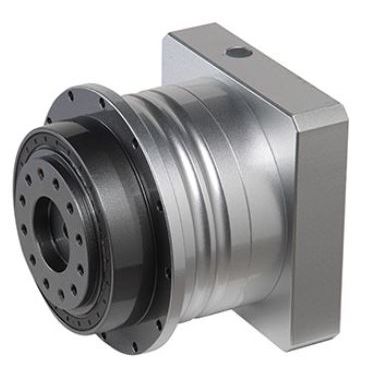

Planetary gear reducer - HTRG-U - JVL A/S - coaxial / 20 - 50 Nm / 100 - 200 Nm
Planetary gear reducer - HTRG-U - JVL A/S - coaxial / 20 - 50 Nm / 100 - 200 Nm
Planetary gear reducer - HTRG-U - JVL A/S - coaxial / 20 - 50 Nm / 100 - 200 Nm - image - 2
Planetary gear reducer - HTRG-U - JVL A/S - coaxial / 20 - 50 Nm / 100 - 200 Nm - image - 3
Planetary gear reducer - HTRG-U - JVL A/S - coaxial / 20 - 50 Nm / 100 - 200 Nm - image - 4
Add to favorites
Compare this product

Go to the JVL A/S website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 10 - 20 Nm
Configuration
compact
Performance
precision, high-performance
Other characteristics
mounted, combined, NEMA 23, NEMA 34

Description

The new HTRG-U product range of precision inline planetary gears is the outcome of years of experience in the industry, and is the culmination of a decade-long dedication to performance enhancement. Features: - 3 frame sizes - Torque continues: 29 - 155 Nm - Torque peak: 60 - 360 Nm - Tolerance: 5' - 12' ArcMin - Stiffness: xx- xxx Nm/ArcMin - Radial load: 500 - 2.000 N - Axial load: 1.100 - 4.000 N - Ratio: 3 - 100:1 All this, combined with tens of motor mounting adapters are possible. The gears can be mounted directly on MAC400-3000 depending of size and on NEA23 and NEMA34. If a special type of gear box is not shown in the datasheet and is needed, then contact JVL Industri Elektronik and we’ll find a type or a solution.
