DIN rail junction box WI1301-2AM17T01NMB

DIN rail junction box
DIN rail junction box
DIN rail junction box
DIN rail junction box
DIN rail junction box
DIN rail junction box
Add to favorites
Compare this product


Characteristics

Mounting
DIN rail

Description

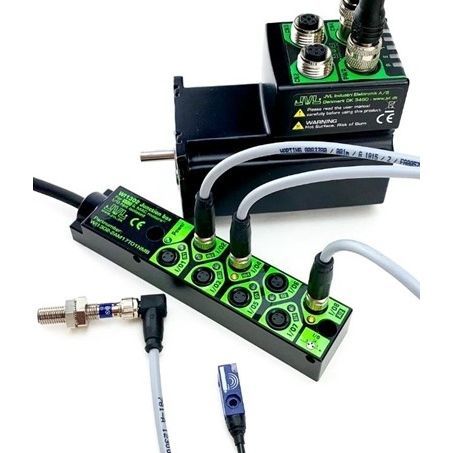

Junction Box for Easy Connection to MAC motor® w/Ethernet. Plug-and-play Junction Box for standard M8-3pin sensors and devices. Just connect the Junction Box to your MAC motor®’s Ethernet module type MAC00-Ex41 and up to 8 local 24 VDC I/Os are available. Connected I/Os can be read or set from the motors embedded ePLC™ program or via Industrial Ethernet. WI1301 offers easy connection of standard 3-pin M8 connectors typically used for limit switches and home sensor. All the 8 I/Os are available on separate M8 connectors, making it extremely easy to integrate and connect MAC motor® with extended Ethernet module into any machine. Details: • Power LED • LEDs for easy monitoring of I/O states • 8 x M8-3pin Female connectors • M12-17pin Male connector for the connection to MAC motor® • 1 meter shielded cable • IP67 rated • Multiple mounting options • Internal or external output supply Connections – Ex41 Ethernet module for MAC motor® Connect sensors and other I/Os according to this diagram, where Female pins are seen from the top of the WI1301. NB! WI1301 can ONLY be used with MAC00-Ex41 modules (not Ex4). Supply must be provided in one of two ways: • Connect external 24 VDC supply using OUT+ (AI2) or OUT+ (AI1). This retains the optic isolation • Set the DIP switches on the Ex41 module to xxx. This method annuls the optic isolation.
