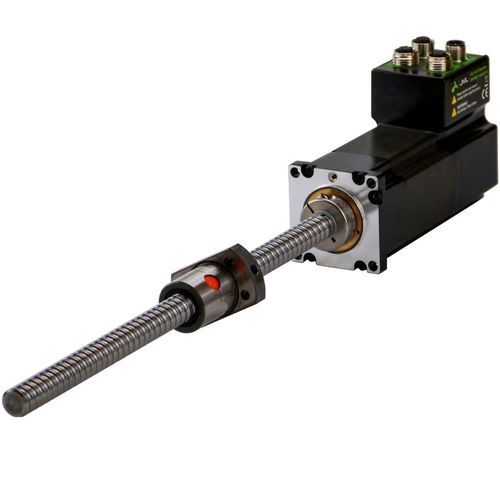

DC motor MIL23xS/W seriesstepper24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Voltage
- 24 V, 48 V, 72 V
- Protection class
- IP44
- Configuration
- NEMA 17, NEMA 23
- Applications
- linear actuator
- Other characteristics
- custom, CANopen, RS-485, EtherCAT, ProfiNet, closed-loop, programmable
- Torque
0.12 Nm, 0.18 Nm, 0.2 Nm, 0.3 Nm
(0.0885 ft.lb, 0.1328 ft.lb, 0.1475 ft.lb, 0.2213 ft.lb)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Diameter
8 mm, 12 mm
(0.31 in, 0.47 in)
Description
Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduce cost but also reduce failure rate due to the less number of components and more simple construction. In applications with small load ratings a linear guide is also not required. New motor technology with large double row ball bearing for axial force 7100N.
Below versions can be delivered
• Rolled ball screw up to 3 meter
• Captive version up to 127 mm travel length
• Motor without screw, for mounting of own screws
On request
• Custom screw end machining
• Special nut design
• Higher IP protection (for motor only)
• Trapeze lead screw with POM or brass material nut
• Teflon coating (only Captive version)
