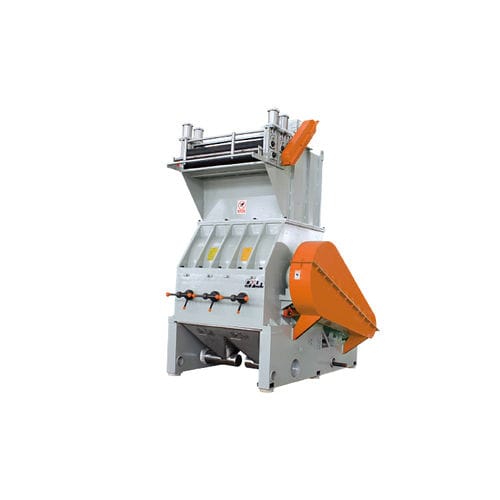

Impact crusher DYPS-P series
stationaryfor plastic sheets

Impact crusher - DYPS-P series - Jwell Extrusion Machinery Co., Ltd., Shanghai - stationary / for plastic sheets
Impact crusher - DYPS-P series - Jwell Extrusion Machinery Co., Ltd., Shanghai - stationary / for plastic sheets
Impact crusher - DYPS-P series - Jwell Extrusion Machinery Co., Ltd., Shanghai - stationary / for plastic sheets - image - 2
Add to favorites
Compare this product


Characteristics

Technology
impact
Mobility
stationary
Other characteristics
for plastic sheets
Capacity

400 kg/h, 500 kg/h
(881.8 lb/h, 1,102.3 lb/h)

Motor power

Min.: 37 kW
(50.31 hp)

Max.: 55 kW
(74.78 hp)

Description

DYPS-P series crusher solves the problem of recycling and pulverizing sheet, sheet and foamed coil with a wide PP/ABS/PMMA thickness between 0.2 and 3mm. This crusher, different from other crusher, has one a set of traction devices, two sets of pressure rollers, air pressure for opening and closing, and its linear velocity can reach 30m/min, which improves the production fficiency. The main shaft is made of high-quality steel and checked by dynamic and static balance.“V" shape cutting technology and water cooling system in the box avoids overheating and sticking of the material in the crusher chamber. According to the customer's requirements, we provides a matching aggregate suction unit and dust separation device, which is more convenient to use.
