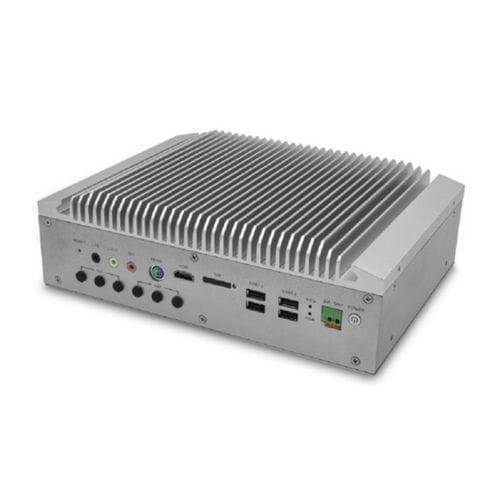

AI PC JEC-2701
boxembeddedIntel® Core i5

AI PC
AI PC
AI PC
AI PC
Add to favorites
Compare this product


Characteristics

Type
AI, box
Configuration
embedded
Processor
Intel® Core i5, Intel® Core i7, Intel® Core i3, 6th generation Intel® Core™, 9th Generation Intel® Core™, 8th Generation Intel® Core™, 7th Generation Intel® Core™ i7, Intel® Core™ i9
Ports
LVDS, HDMI, VGA, DVI, DDR4 SO-DIMM, USB 2.0, USB 3.0, RS-485, SATA, M.2
Operating system
Linux, Windows 10, Windows 7
Domain
industrial
Other characteristics
SSD

Description

Industrial embedded box pc adopt replaceable LGA1151 packaged 6th/7th/8th/9th generation i3/i5/i7/i9/G embedded T-series 35W CPU. Optimized H110 chipset (C236 supports E3 V5&V6 CPU, triple display, SATA Raid). Two 260 Pin DDR4 SO-DIMM slots support a single 16GB up to 32GB system memory. According to different CPUs, it can support memory specifications DDR4-2133, DDR4-2400, DDR4-2666 respectively. AI box quipped with Intel CPU integrated display controller (depending on the CPU). Storage is 2 SATA3.0, (C236 supports Raid0,1) 1 mSATA; 1 M.2 2242/2280 SATA SSD (C236 supports nVME x4). Standard 2x Intel GbE, LAN1: i219LM, LAN2: i211AT, Optional high configuration: two more Intel I211AT, a total of 4 intel Gigabit interfaces. AI box designed with 4 USB3.0 (rear), 4 USB2.0 (front), 1 USB2.0Type A inside. One 4Pin SM Bus port, 3 x COM. Support watchdog. Support Win7/Win10/WES7/Linux, 32bit/64bit system. Good vibration and shock resistance to protect the industrial embedded box pc. When using high heat expansion equipment it has 2 4028 chassis fans for choices.
