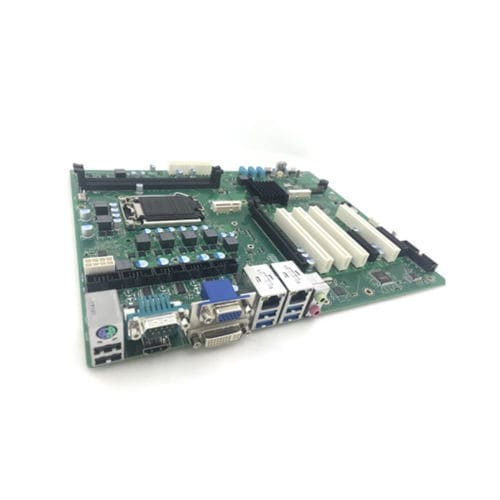

ATX motherboard AIoT0-H110 series

Intel® Core i3Intel® Core i5Intel® Core i7

With a wide range of external interfaces, the AIoT0-H110 supports high-performance Intel 6th, 7th, 8th, and 9th Gen CPUs. It is ideal for applications in machine vision (e.g., automated testing, image analysis, and processing), automated production and testing, bank security monitoring systems, intelligent building management systems (IBMS), integrated security management systems (ISMS), integrated traffic management systems (ITMS), subway monitoring systems, call centers, public security recording systems, command and dispatch centers, workstations, insurance, securities, and other industries requiring recording and monitoring systems. Display controller Intel CPU integrated display controller (depending on CPU) Audio Realtek ALC897, supports Mic-in and Spk-out Network - AIoT0-H110-1，LAN1: i219V, LAN2: RTL8111H AIoT0-H110-2，LAN1: i219V, LAN2: Intel i226V Parallel port - 1 * parallel port Keyboard & mouse 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO Digital I/O 8-digit I / O, providing power and ground, + 5V level LPC 1 * LPC local bus interface TPM interface - LPC interface supports TPM module Power supply ATX power source, supports ATX/AT On/Off mode Operating temperature and humidity 0 - 60°C, 5%- 95% with no condensation Non-operating temperature and humidity - -40 - 80°C, 5%- 95% with no condensation Watch Dog 255-level programmable in the mode of seconds/minutes, supports timeout interrupt or system reset BIOS AMI UEFI BIOS PCB dimensions (L*W) 305mm * 244 mm
